Hydrant Carts & Servicers

Cart or Chassis-Mounted

Westmor offers reliable hydrant carts and servicers to ensure a smooth aviation refueling process. All are built in compliance with ATA – 103, NFPA 407 and NIST Handbook 44 standards and regulations.

Hydrant servicers are equipped with hydraulically-raised fueling platforms to make fueling more convenient. With flow rates up to 800 GPM and lift deck fueling rates up to 800 GPM, fueling will also be faster.

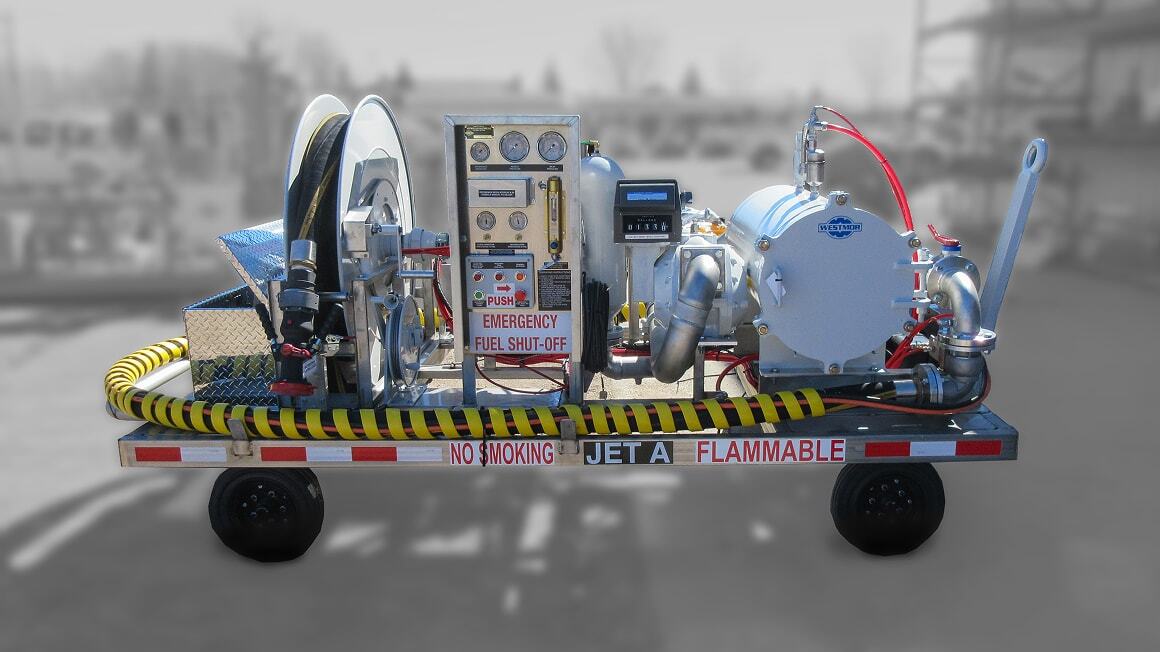

Hydrant carts are fully mobile, solar-powered and can be towed up to 25 MPH and fuel at rates of up to 450 GPM. Multiple configurations and options to choose from.

Hydrant cart on Runway | Westmor

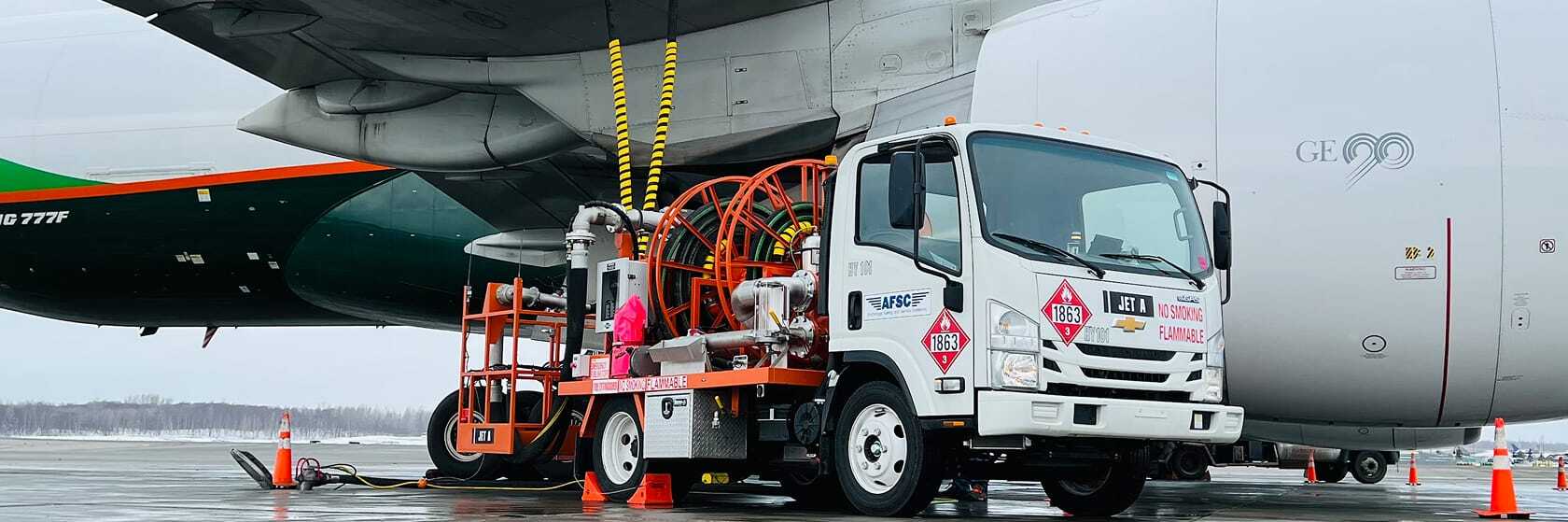

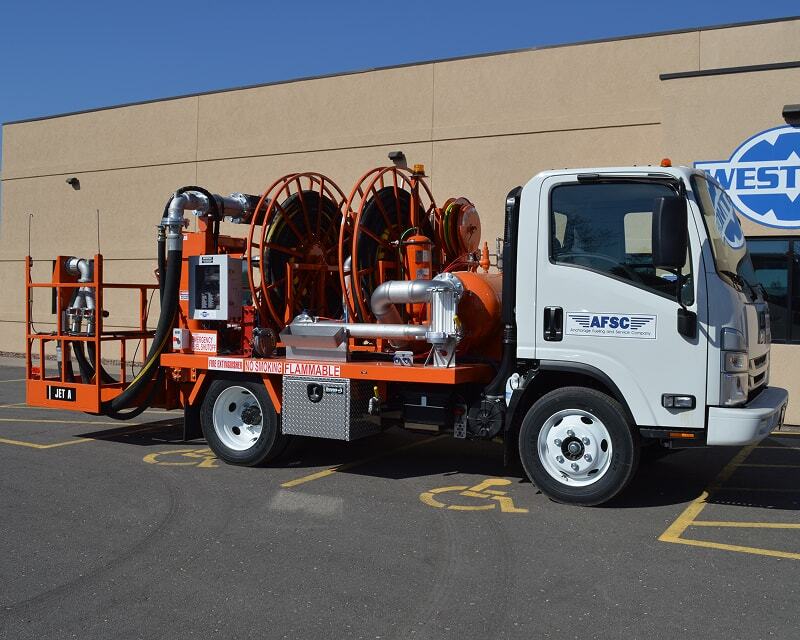

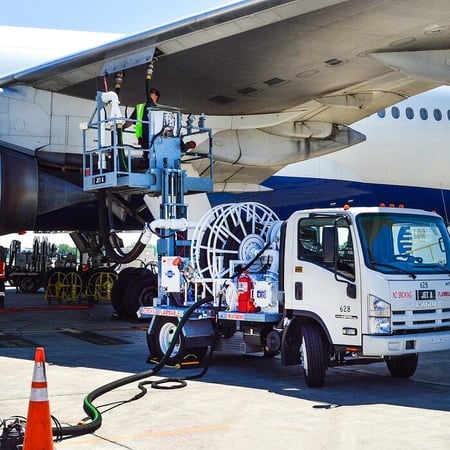

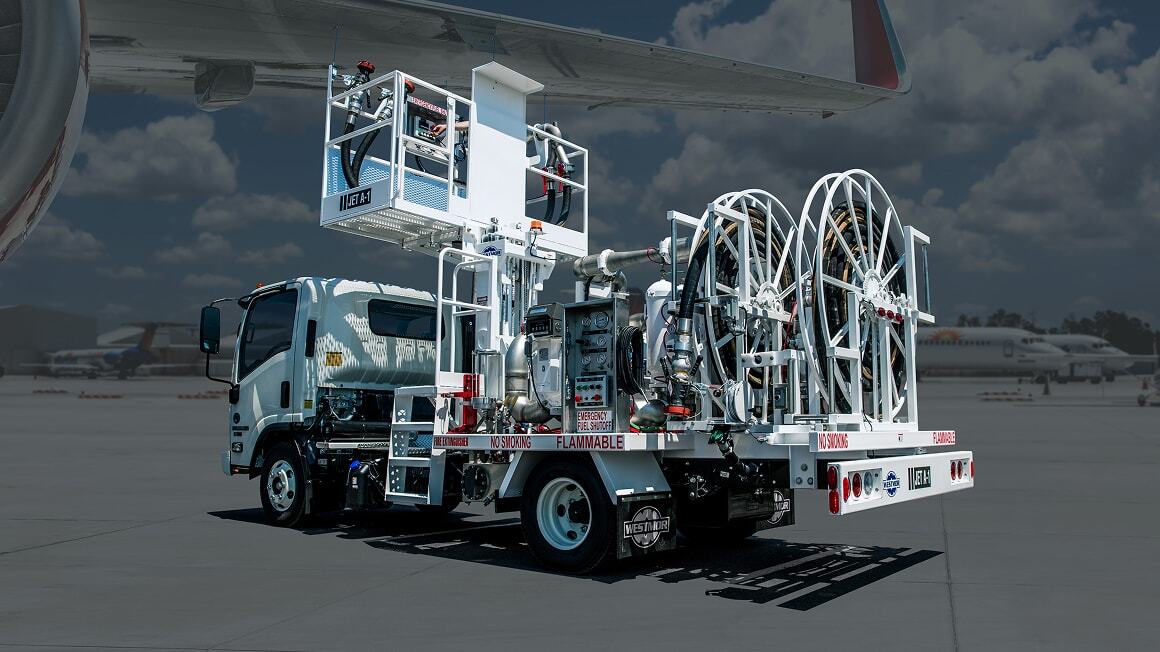

Hydrant Servicers

Hydrant Servicer by Westmor

Features

  • Fuel over fuel control system
  • Electric deadman switch
  • Primary and secondary pressure control
  • Venturi’s to compensate for pressure loss
  • Filter sump water sensor
  • 4″ fuel pressure gauge

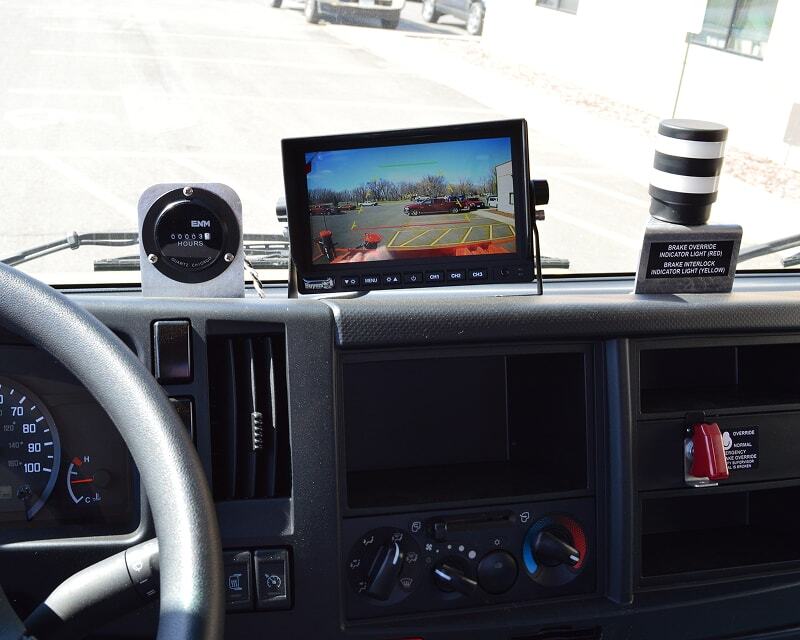

  • Back-up alarm
  • Differential pressure gauge with high differential shut-down system
  • Filter separator
  • Positive displacement filter

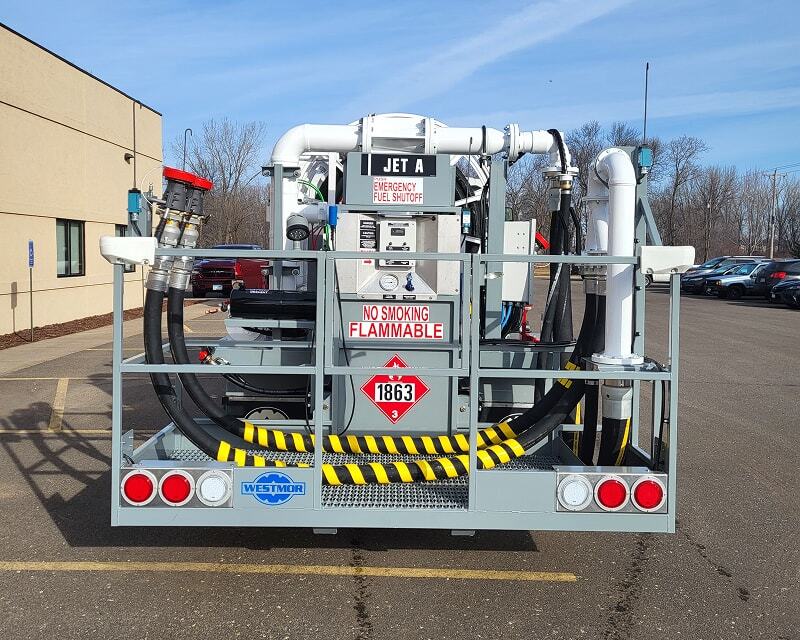

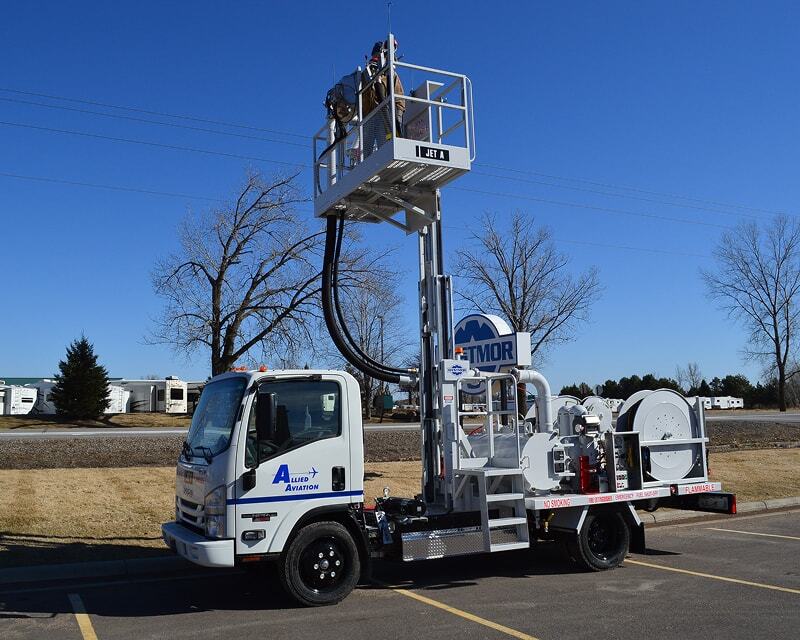

  • Lift deck

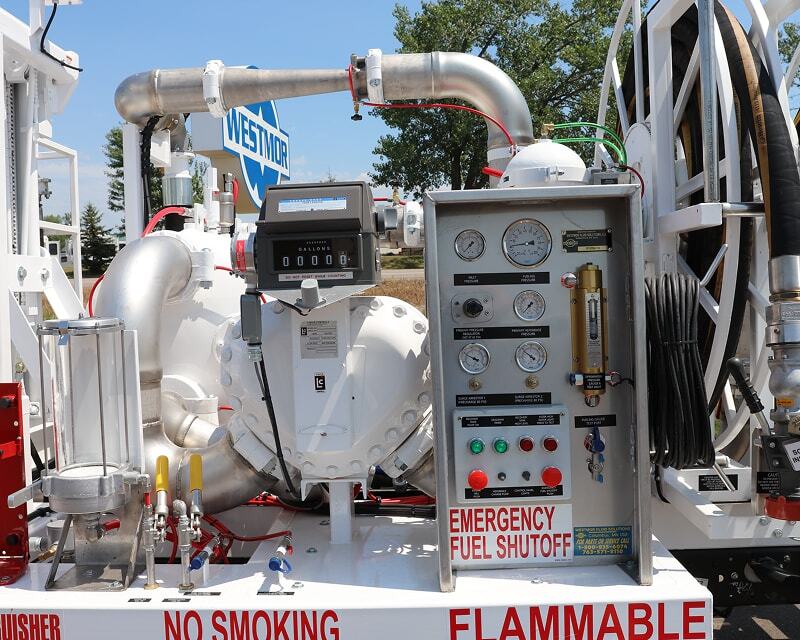

  • Main control panel
  • Pressure-controlling coupler
  • Bonding reel

Options

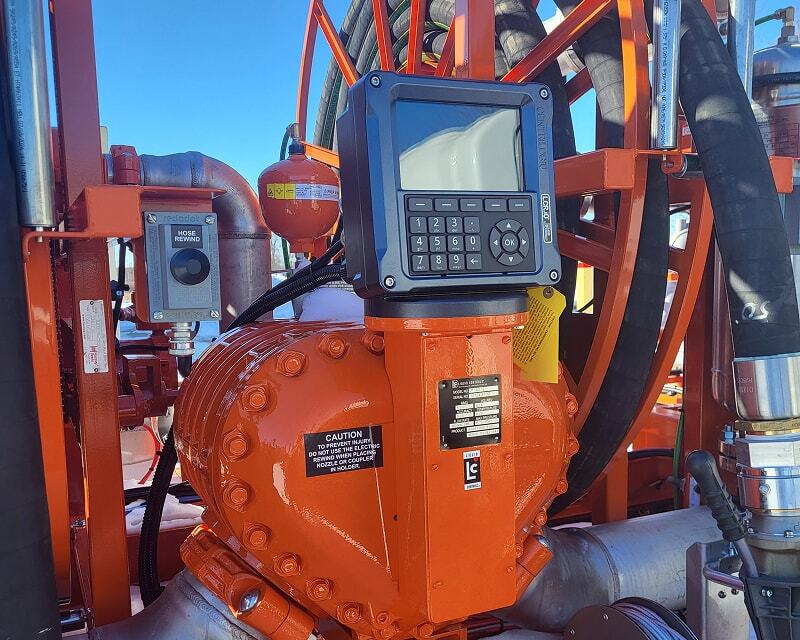

  • Electronic meter registration
  • 400 GPM stand-off hose
  • Recovery tank
  • Pump back system for recovery tank
  • Storage box
  • Arctic cold weather hoses
  • Closed circuit sample system

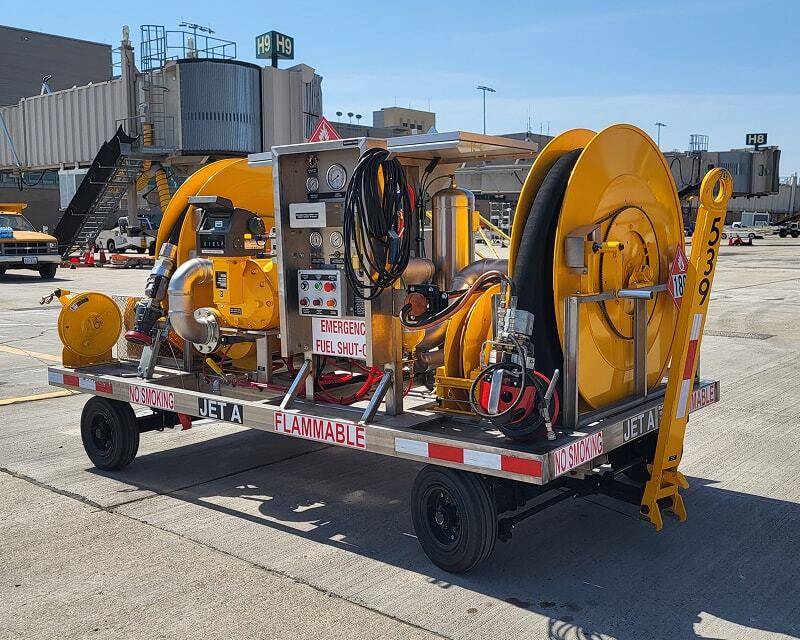

Hydrant Carts

Features

  • Electric deadman switch
  • Primary pressure control -4″ API hydrant coupler
  • Secondary pressure control – Hose End Control Valve (HECV)
  • Custom machined venturi to compensate for pressure loss
  • Mechanical ticket printer
  • Filter sump water sensor
  • 4″ fuel pressure gauge
  • Differential pressure gauge with high differential shut-down system
  • Brake interlocks: lift deck, nozzles and hydrant coupler

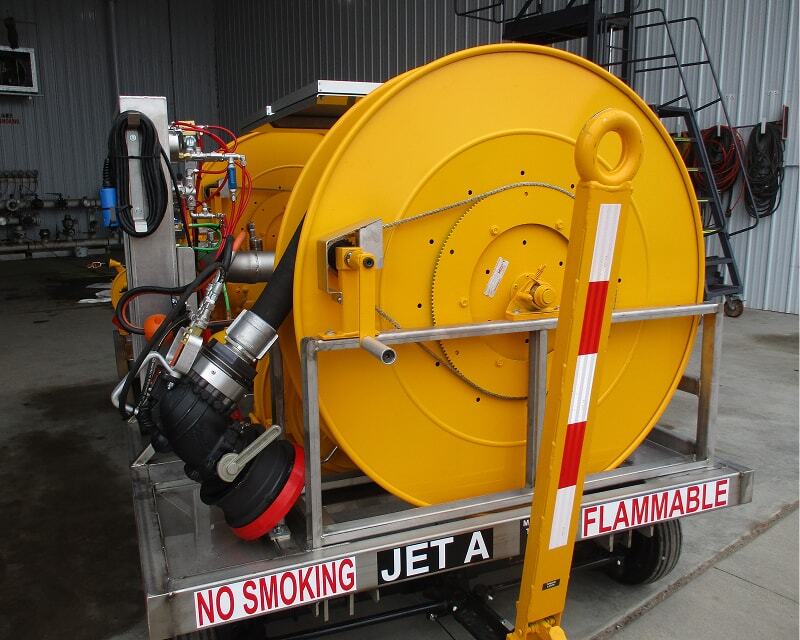

  • Manual crank rewind
  • Filter separator
  • Pressure control coupler
  • 1½” x 50′ aircraft fueling hose
  • Single-point nozzle
  • Product recovery tank

Options

  • Brake interlocks

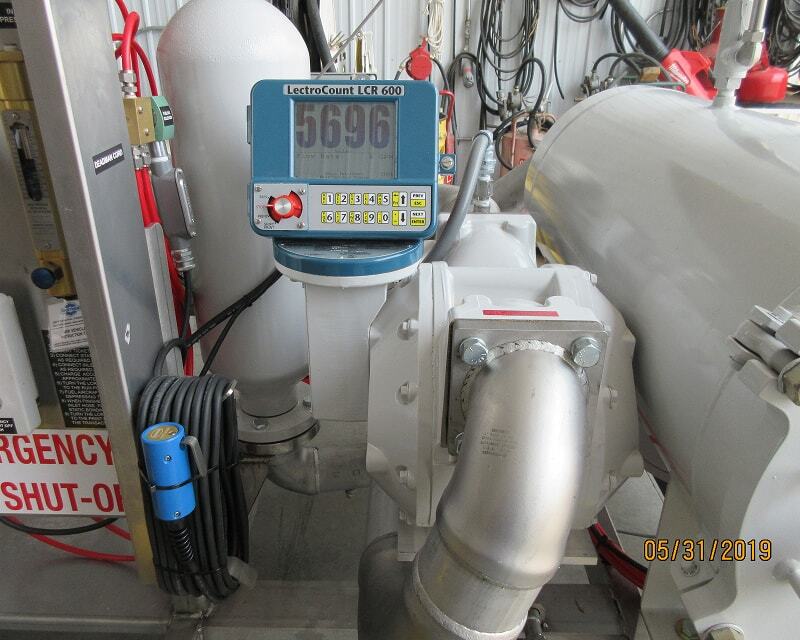

  • Electronic registration system
  • Pump back system for recovery tank
  • Wireless data capture system

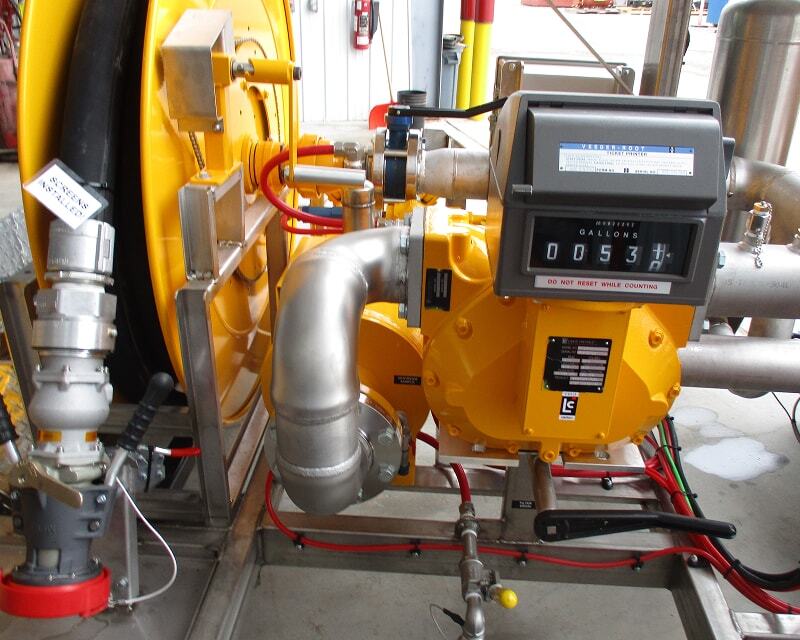

  • Mechanical ticket printer

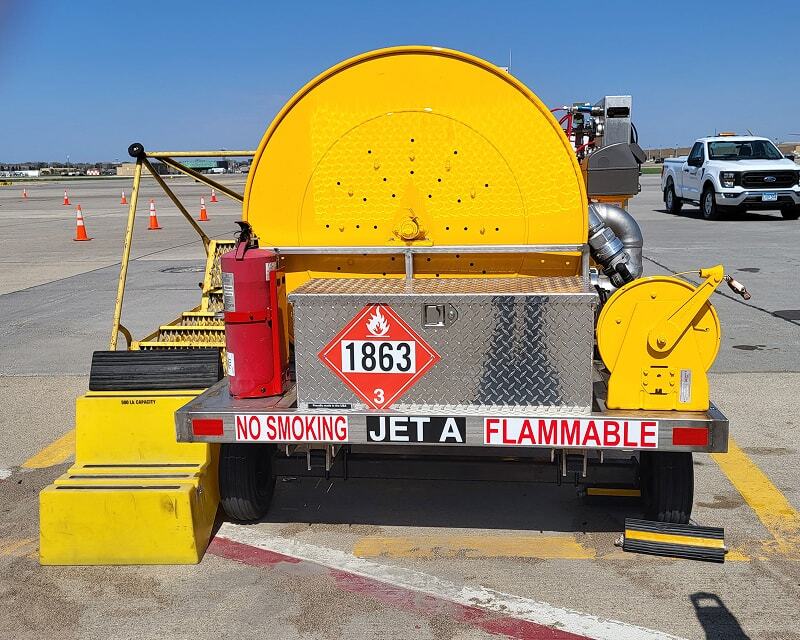

  • Storage box
  • Aluminum or stainless steel trailer

Why Westmor?

Forward Thinking

Westmor is available to train your staff on complicated aviation equipment to save you time and money and reduce the risk for user-related errors.
